Mount the Device

Mount the device using two socket-head screws (M5). Insert the screws into the mounting holes on the sides and fasten them to the mounting surface. Tighten the screws with a torque of 2.2 Nm.

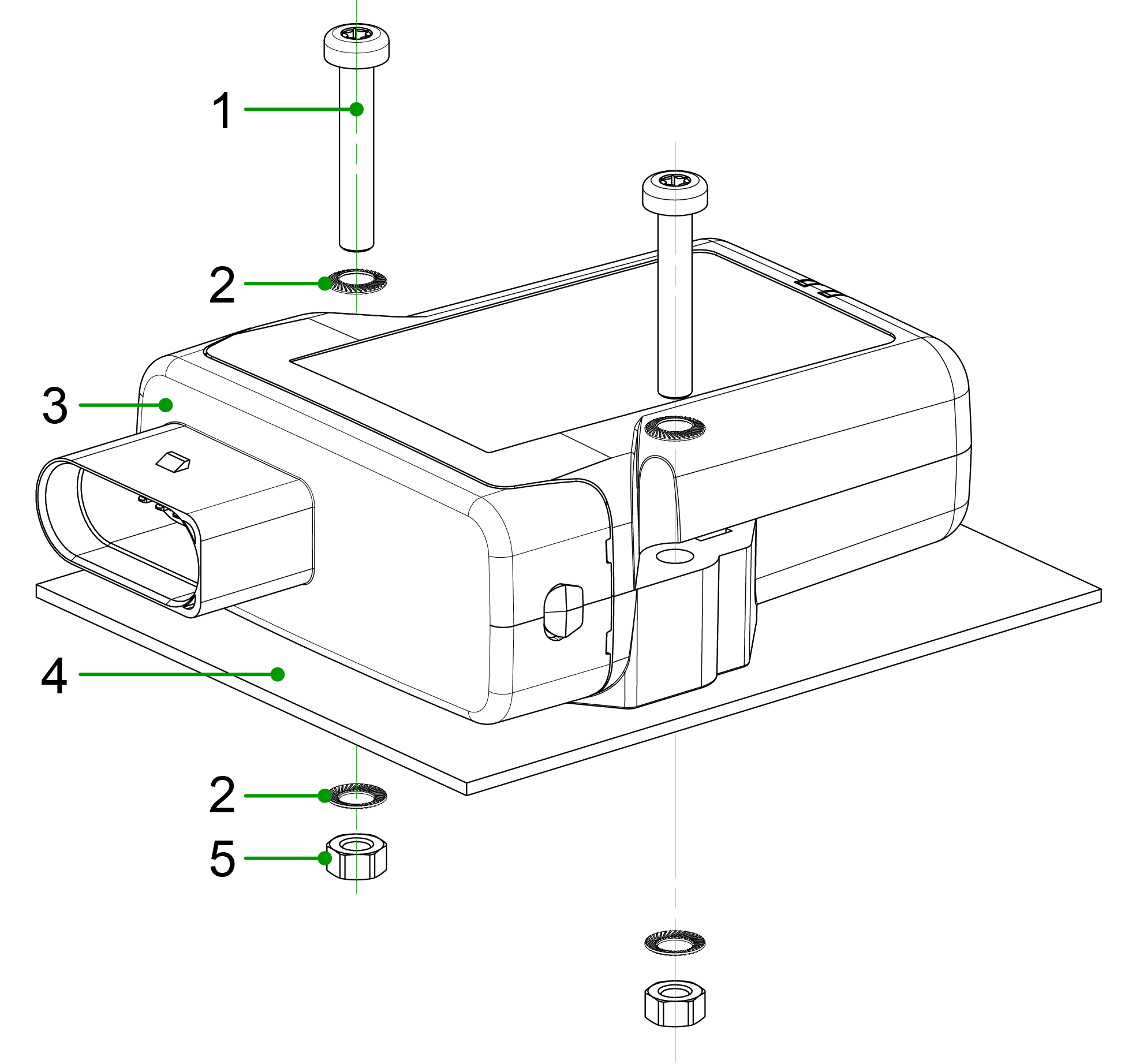

Example: Screw mounting, horizontal
Figure 1: Example: Screw mounting, horizontal

  1. Socket-head screw DIN 912 – M5 x 30 mm
  2. Lock washer M5, di/da = 5.3 / 9 mm
  3. CANlink® mobile 3600
  4. Mounting surface D = 3 mm
  5. Hexagon nut DIN 934 / ISO 4032 – M5

For detailed dimensions, refer to Technical Drawings.

Mounting Orientation

Follow these guidelines to ensure correct mounting orientation for proper functionality, environmental protection, and radio signal reception.

The illustration below shows the mounting orientations of the device:

  • A–C: Allowed, ensures water ingress and fire protection
  • F: Conditionally allowed, fire protection only; no water exposure permitted
  • D–E: Not allowed, no water or fire protection

Only use the mounting orientations shown here.

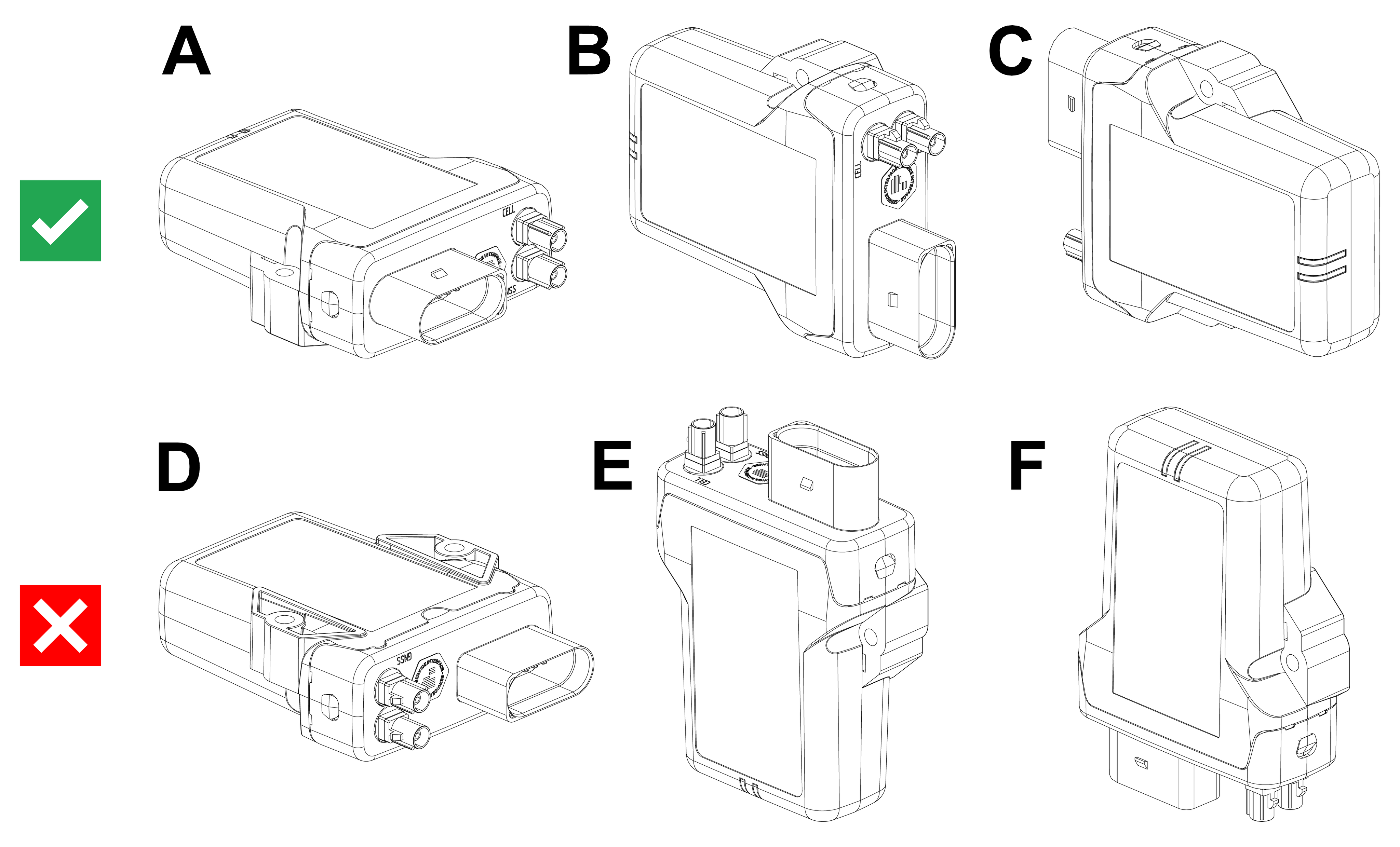

Mounting orientations of CANlink® mobile 3600
Figure 2: Mounting orientations of CANlink® mobile 3600

Fire Protection

The LED view elements do not comply with the flammability class required for a fire protection housing.

Plug Orientation

  • Plugs must point to the left or right
  • Do not mount with plugs pointing upwards
  • Avoid mounting with plugs pointing downwards (risk of water ingress)

Mounting in Wet Environments

For installations exposed to weather or other sources of water, ensure that the mounting prevents water ingress and accumulation.

  • Ensure a gap of ≥ 5 mm between the housing and the mounting surface to prevent capillary action
  • Select a mounting orientation that allows water to drain and prevents water retention
  • Ensure that no water accumulates around the pressure-compensation element

If exposure to water cannot be avoided:

  • Install protective covers or shrouds if the device is exposed to water1.

  • Use nonmetallic materials (e.g. plastic) to avoid interference with radio signal reception

  • Use spacers or a mounting plate if required

Additionally:

  • Ensure that cable ends are properly sealed to prevent water ingress due to capillary action

Avoid mounting the device in positions directly exposed to rain or intense sunlight, as this may affect the ingress protection.

  1. Protective covers are not distributed by Proemion. They must be obtained directly from manufacturers (e.g., Schlemmer; minimum order quantity may vary). ↩
