Annex¶
This chapter contains technical data and certificates.
Technical Drawings¶

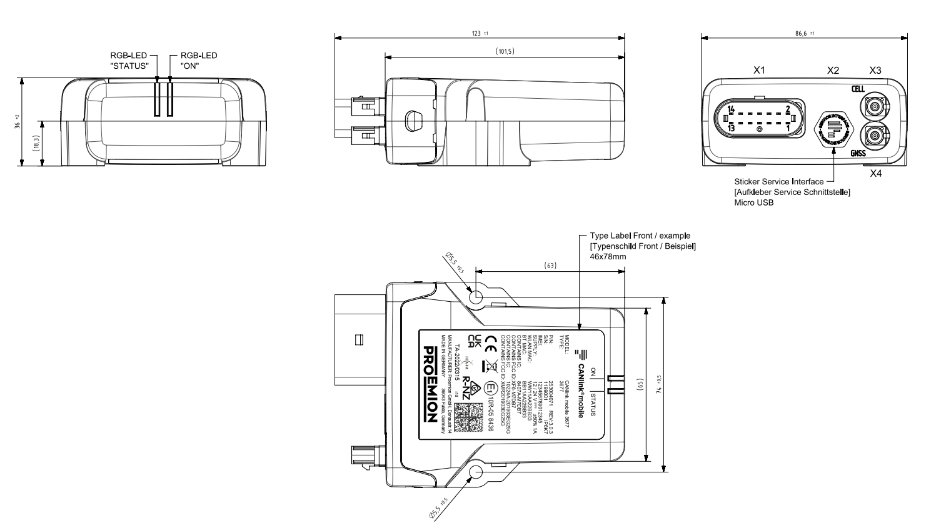

Housing
The CANlink® mobile 3600 offers the GH1209 housing.
Find the complete assembly drawings and the 3D files in the Download Center: Download Center
Technical Data¶
This chapter contains information on the technical data of the device.
Mechanical¶
| Parameter | Value |
|---|---|
| Dimensions width/height/depth [mm] | 86,6±1 / 123±1 / 36±1 |
| Color | Black |
| Protection class | IP6K7 |
| The protection class is only ensured if all connectors of the device are plugged in or covered with suitable protection caps. | |
| Temperature range | Standard mode: -40 °C ... +80 °C / -40 °F ... +176 °F |
| Battery operation: -20 °C ... +60 °C / -4 °F ... +140 °F | |
| Battery charging: 0 °C ... +45 °C / 32 °F ... +113 °F | |
| Please Note: With CANlink® mobile 3600 variants, Bluetooth, BLE and Wi-Fi® could have delayed connection times up to 10 Minutes at ambient temperatures lower than -20°C / -4°F | |
| Vibration | The CANlink® mobile 3600 was qualified referring to Standard EN 60068-2-6 with up to 10g. |
| Please Note: It is recommended that the device is installed in such a way that the actual load is significantly lower than the limit values during the qualification tests. | |
| Shock | The CANlink® mobile 3600 was qualified referring to Standard EN 60068-2-27 with up to 30g. |
| Please Note: It is recommended that the device is installed in such a way that the actual load is significantly lower than the limit values during the qualification tests. | |
| Altitude | The altitude during operation is limited to 2000m for all CLM 33xx/34xx/35xx/36xx devices. This requirement is part of the Electrical Safety Test for IEC 62368-1 |
| Weight | 36xx: 190 g |
| Standard housing material | PA 66/6 - FR |
| Pressure equalizing membrane | Yes |
| Resistance of the housing material to chemicals | The housing material of the device was successfully tested against the following liquids in accordance with the standard EN ISO 175. |
| - Exposure time: 24h - Temperature: 20°C, for Substances No. 5, 6, 7: 80°C - Rel. Humidity < 40% - Operating mode: Off | |
| 1. Gasoline | |
| 2. Diesel | |
| 3. Fast cleaner spray Tetrachlorethen | |
| 4. Ethanol | |
| 5. Chain adhesive lubricant | |
| 6. Hydraulic oil HLVP68 | |
| 7. Hydraulic oil biologic BP Bio SE 46 | |
| 8. Coca Cola | |
| 9. Cement CEM 1 DIN EN 197-1 „Quickmix" (Bauhaus) | |
| 10. Fertilizer NPK,Gardol Grünpflanzendünger 12-4-6 (Bauhaus) | |
| 11. Skin care Handsan Cream & Touch (dm) | |
| 12. Sunscreen "Sundance Sonnenmilch 20 mittel" (dm) 13. Cooler Antifreeze Type G12 | |
| 14. Window cleaner concentrate | |
| 15. Suds Rivolta BWR 210, 10:1 |
For more information on qualification tests and reports, refer to the Service and Support.
Electrical¶
| Parameter | Value |
|---|---|
| Supply voltage range terminal 30 DC | 12 / 24 V DC ±50 % |
| Battery voltage, battery operation | 3.7 V (internal) |
| Power consumption, with terminal 30 supply (24 V) | < 250 mA (standard mode) < 500 µA (sleep mode) |
| Power consumption, battery operation (3.7 V) | < 600 mA (standard mode) < 100 µA (sleep mode) |
| Average power consumption | < 4 W |
| Controller | Arm Cortex M4 168 Mhz |
| Memory expansion Program Flash | 1 MB |
| Data Flash memory expansion | 128 MB (Types 36xx) |
| Memory expansion FRAM | 8 kB (Types 36xx: 32 kB) |
| Memory expansion SRAM | 760 kB (Types 36xx: 1.2 MB) |
| LEDs | 2 LEDs, RGB (red/green/blue) |
| Keys | Types 3637, 3677: power-reset button in main plug connector |
| Battery | Lithium-polymer, 3.7 V; 1.15 Ah; 4.225 Wh |
| - Charge time: approx. 5 hours | |
| - Operating time: | |
| - approx. 1.5 h (standard mode) | |
| - approx. 14 days (24-hour cycle) | |
| - approx. 70 days (Sleep mode / Standby) | |
| RTC with back-up capacitor | Back-up time: 48 h at 25 °C |
| - Accuracy: ±2 s/day at 25 °C, -15 s/day at the lower and +2 s/day at upper temperature limit | |
| - Synchronization: GNSS/NTP/DataPlatform | |
| - Can be used as source for cyclic wakeup | |
| For the CANlink® mobile 3600 devices, the back-up capacitor is not assembled and the back-up time feature is not available from certain S/N onwards. Please see the referring PCN for CANlink mobile 3600 without SuperCap. |
Interfaces¶
| Parameter | Value |
|---|---|
| CAN (number, ISO) | CAN1: ISO 11898-2 |
| CAN2: ISO 11898-2, galvanically isolated | |
| CAN3: ISO 11898-2 (CAN-FD_ready) | |
| NOTE: CAN3 has a lower performance compared to CAN1/CAN2. | |
| CAN specification | 2.0 A/B |
| Max. CAN baud rate | 1000 kbit/s, 5 Mbit/s at CAN3 with firmware which supports CAN-FD |
| Cellular | 36xx: LTE/UMTS/GSM |
| Cellular frequency range | Types 36xx 3GPP Band Transmit Receive Unit |
| - GSM850 824~849 869~894 MHz | |
| - EGSM900 880~915 925~960 MHz | |
| - DCS1800 1710~1785 1805~1880 MHz | |
| - PCS1900 1850~1910 1930~1990 MHz | |
| - WCDMA B1 1920~1980 2110~2170 MHz | |
| - WCDMA B2 1850~1910 1930~1990 MHz | |
| - WCDMA B4 1710~1755 2110~2155 MHz | |
| - WCDMA B5 824~849 869~894 MHz | |
| - WCDMA B8 880~915 925~960 MHz | |
| - LTE-FDD B1 1920~1980 2110~2170 MHz | |
| - LTE-FDD B2 1850~1910 1930~1990 MHz | |
| - LTE-FDD B3 1710~1785 1805~1880 MHz | |
| - LTE-FDD B4 1710~1755 2110~2155 MHz | |
| - LTE-FDD B5 824~849 869~894 MHz | |
| - LTE-FDD B7 2500~2570 2620~2690 MHz | |
| - LTE-FDD B8 880~915 925~960 MHz | |
| - LTE-FDD B12 699~716 729~746 MHz | |
| - LTE-FDD B13 777~787 746~756 MHz | |
| - LTE-FDD B18 815~830 860~875 MHz | |
| - LTE-FDD B19 830~845 875~890 MHz | |
| - LTE-FDD B20 832~862 791~821 MHz | |
| - LTE-FDD B25 1850~1915 1930~1995 MHz | |
| - LTE-FDD B26 814~849 859~894 MHz | |
| - LTE-FDD B28 703~748 758~803 MHz | |
| - LTE-TDD B38 2570~2620 2570~2620 MHz | |
| - LTE-TDD B39 1880~1920 1880~1920 MHz | |
| - LTE-TDD B40 2300~2400 2300~2400 MHz | |
| - LTE-TDD B41 2496~2690 2496~2690 MHz | |
| Cellular transmission rate | - GPRS upload: 85.6 kbit/s |
| - GPRS download: 85.6 kbit/s | |
| - Edge upload: 236 kbit/s | |
| - Edge download: 236 kbit/s | |
| - UMTS upload: 384 kbit/s | |
| - UMTS download: 384 kbit/s | |
| - HSUPA upload: 5.7 Mbit/s | |
| CANlink mobile 36xx | |
| - HSDPA download 42 Mbit/s | |
| - LTE-FDD CAT 4 upload: 50 Mbit/s | |
| - LTE-FDD CAT 4 download: 150 Mbit/s | |
| - LTE-TDD CAT 4 upload: 30 Mbit/s | |
| - LTE-TDD CAT 4 download: 130 Mbit/s | |
| Maximum Cellular transmission power | CANlink mobile 3653, 3657, 3673, 3677: |
| - 33 dBm with GPRS | |
| CANlink mobile 3610, 3611, 3613, 3617, 3633, 3637: | |
| - 30 dBm with GPRS | |
| CANlink mobile all variants: | |
| - 27 dBm with Edge | |
| - 24 dBm with UMTS | |
| - 24 dBm with HSPA | |
| - 23 dBm with LTE | |
| Satellite systems supported | GPS/QZSS L1 C/A, GLONASS L10F BeiDou B1I, Galileo E1B/C @ Frequency Band 1559 -- 1608 MHz |
| - GNSS fix: cold start ≤30 s / warm start ≤1 s | |
| - Update rate: 1 Hz | |
| - Accuracy: ≤5 m (CEP, 50 %, 24 h static, -130 dBm, > 6 satellites in visual range) | |
| Bluetooth Standard | Types 3630, 3633, 3673, 3637, 3677 |
| - Bluetooth 5.0 | |
| Bluetooth frequency range | Bluetooth Classic: 2.402 - 2.480 GHz in 79 channels |
| Bluetooth LE: 2.402 - 2.480 GHz in 40 channels | |
| Bluetooth transmission rate | Bluetooth Classic: up to 3 Mbit/s Bluetooth 4.0: up to 1 Mbit/s Bluetooth 5.0: up to 2 Mbit/s |
| BLE performance | Single point 400 CAN messages per second (Server to Client) |
| Wi-Fi® Standard | Types 3630, 3633, 3673, 3637, 3677 |
| IEEE 802.11 abgn | |
| Wi-Fi® frequency range | - 2.400 - 2.4835 GHz (IEEE_802.11_b/g/n) in 13 channels |
| - 5.150 - 5.725 GHz (IEEE_802.11_a/n) in 24 channels | |
| Wi-Fi® transmission rate | IEEE 802.11a: to 54 Mbit/s |
| IEEE 802.11b: to 11 Mbit/s | |
| IEEE 802.11g: to 54 Mbit/s | |
| IEEE 802.11n: to 65 Mbit/s (planned) | |
| Wi-Fi® encryption | Types 3630, 3633, 3673, 3637, 3677 WPA/WPA2-Personal, WPA/WPA2 Enterprise for Client, EAP-TLS, EAP-FAST, EAP-TTLS, EAP-LEAP, PEAP-MSCHAP-v2 |
| USB | 1 micro-USB type A/B (12_MBit/s), 2.0 full speed, self-powered device |
| Digital OUT | 1 digital output |
| - Terminal 30 switching 6 VDC ... 36 VDC | |
| - max. output current: 500 mA | |
| - max. switch frequency: 10 Hz | |
| - Surge-proof up to 36 VDC | |
| - Reverse voltage protection up to -36 VDC | |
| Analog IN | 3 analog inputs |
| - Measurement range: 0 VDC to 15 VDC | |
| - Input resistance: 20 kΩ | |
| - Resolution: 12 bit | |
| - Sampling rate: 20 Hz | |
| - Surge-proof up to 53 VDC | |
| - Reverse voltage protection up to -53 VDC | |
| - Tolerance: ± 1 % of measurement range end value (at 25 °C) | |
| Terminal 15 | 1 digital / analog input |
| - Measurement range: 0 VDC to 78 VDC | |
| - Input resistance: 103 kΩ | |
| - Resolution: 12 bit | |
| - Sampling rate: 20 Hz | |
| - Digital switching threshold: 5.5 VDC (hysteresis 2.3 VDC) | |
| - Surge-proof up to 100 VDC | |
| - Reverse voltage protection up to -100 VDC | |
| - Tolerance: ± 1 % of measurement range end value (at 25 °C) | |
| Terminal 30 | 1 analog input |
| - Measurement range: 0 VDC to 78 VDC | |
| - Input resistance: 103 kΩ | |
| - Resolution: 12 bit | |
| - Sampling rate: 20 Hz | |
| - Surge-proof up to 36 VDC | |
| - Reverse voltage protection up to -36 VDC | |
| - Tolerance: ± 1 % of measurement range end value (at 25 °C) | |
| Acceleration sensor | Measurement range: ±16 g |
| - Resolution: 16 bit | |
| - Sampling rate: <10 Hz | |
| - Tolerance: ≤2 % of measurement range end value and offset ±0.15 g (at 25 °C) | |
| (Sensor is not calibrated) | |
| Gyro sensor / Rate of rotation sensor | Measurement range: ±250 °/s |
| - Resolution: 16 bit | |
| - Sampling rate: <10 Hz | |
| - Tolerance: ≤3 % of measurement range end value and offset ±3 °/s (at 25 °C and 1 g) | |
| (Sensor is not calibrated) | |
| Temperature sensor | Measurement range: -40 °C ... +85 °C / -40 °F ... +185 °F |
| - Resolution: 0.1 °C | |
| - Sampling rate: 20 Hz | |
| - Tolerance: ±3 °C / ±5.6 °F | |
| (Sensor is not calibrated) |
Protocols¶
| Protocol | Available |
|---|---|
| Layer 2 | Yes |
| CANopen | Yes |
| J1939, OBDII | Yes |
| Customer-specific | On request |
| TCP | Yes |
| SDO client | Yes |
Status Indicators¶
| Available | Status indicator |
|---|---|
| All types | 2 RGB LEDs (ON_/_STATUS) |
