Adapter Cables

The following adapter cables are applied when replacing old devices.

Adapter Cable to M12, 5-Pin

The Adapter Cable to M12, 5-Pin (part number 136200001).

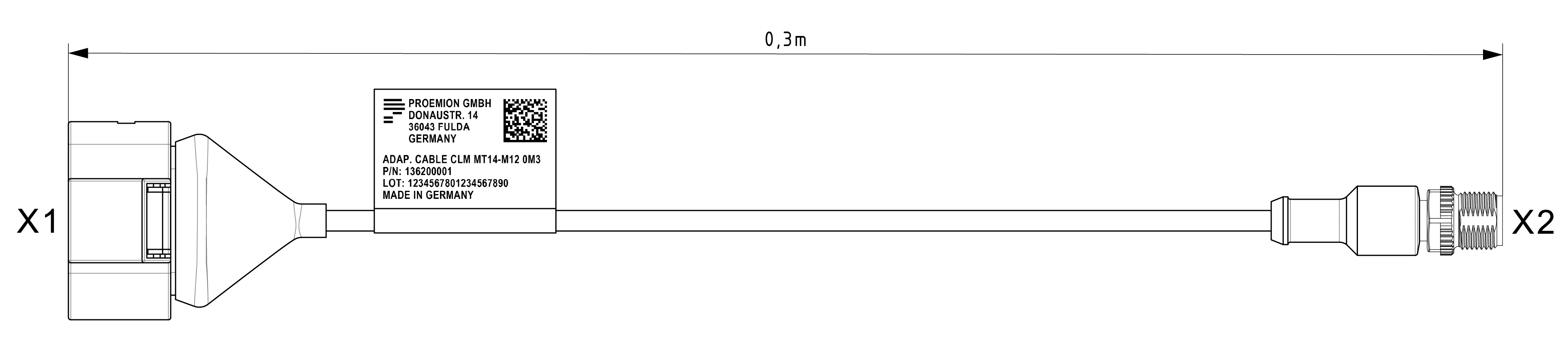

Figure 1: Adapter Cable to M12, 5-Pin

It has the following connectors:

X1 - Micro-Timer II socket connector, 14-pin, female, code I

X2 - M12 connector, 5-pin, male, code A

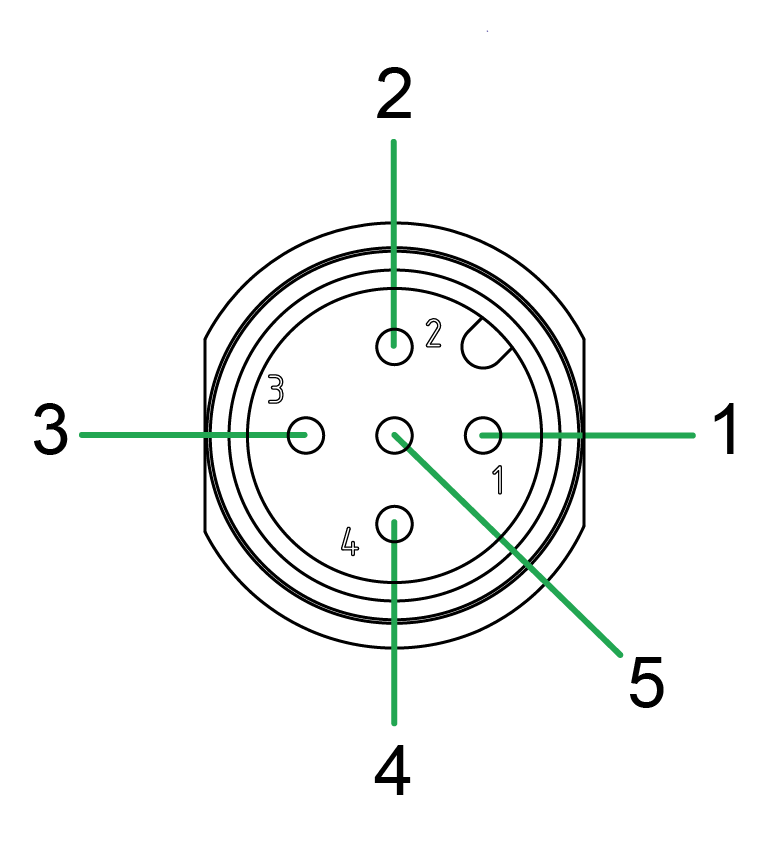

Figure 2: X2 - M12 connector, 5-pin, male, code A

Adapter Cable to M12, 12-Pin

The Adapter Cable to M12, 12-Pin (part number 136200002).

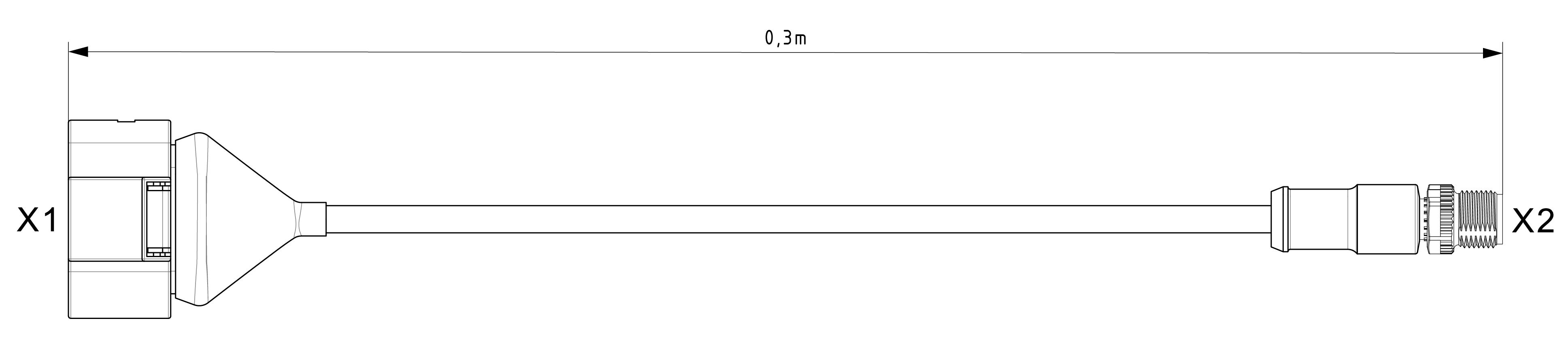

Figure 3: Adapter Cable to M12, 12-Pin (part number 136200002)

It has the following connectors:

X1 - Micro-Timer II socket connector, 14-pin, female, code I

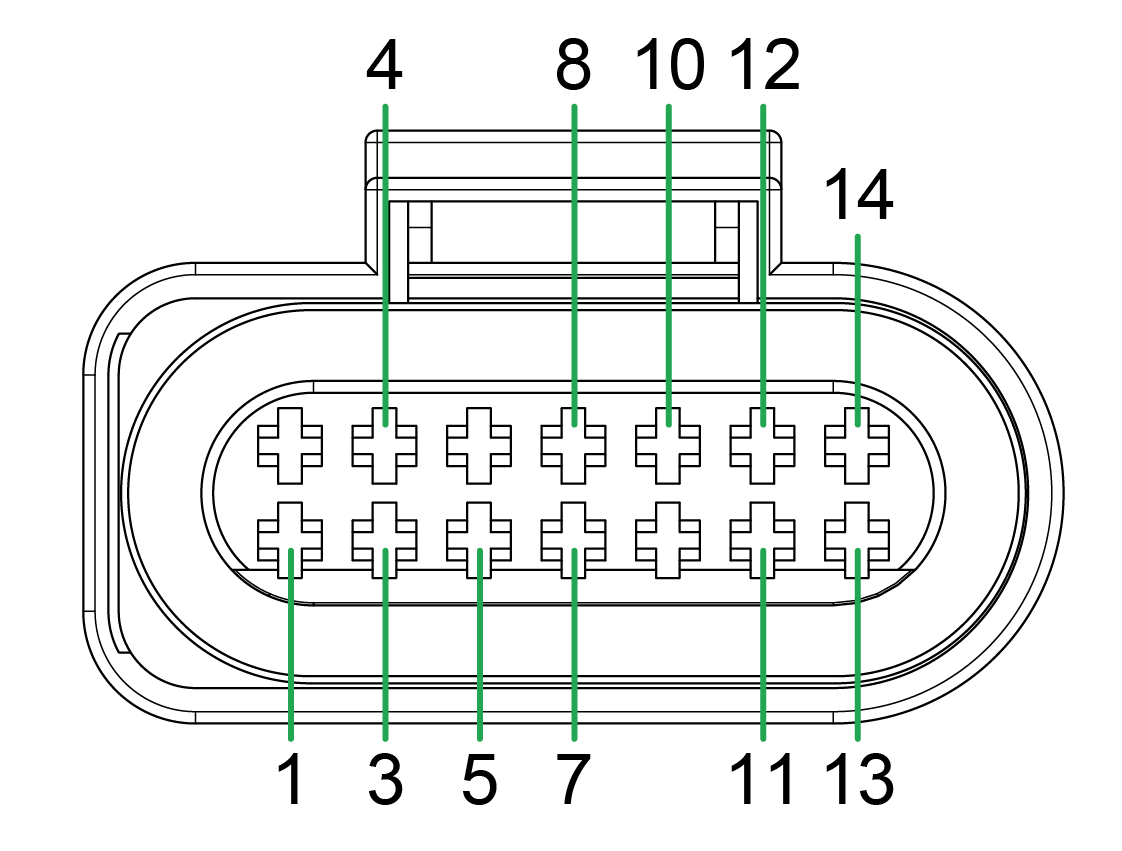

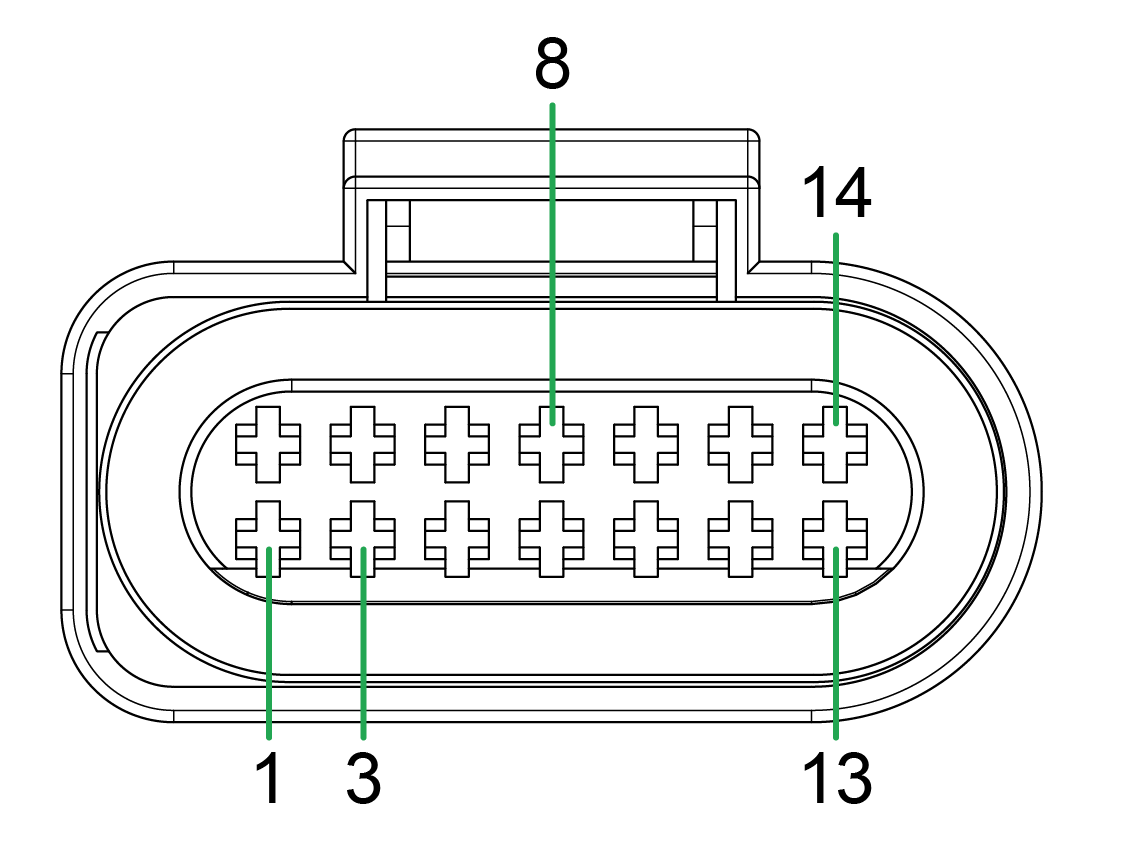

Figure 4: X1 - Micro-Timer II socket connector, 14-pin, female, code I (part number 136200002)

X2 - M12 connector, 12-pin, male, code A

Figure 5: X2 - M12 connector, 5-pin, male, code A (part number 136200002)
