Gauge¶
The Gauge widget allows the user to present signal data on a relative scale, including peak values.
Configuration¶
Configure the widget and put it on the Organization Dashboard and/or the Model Dashboard by following the steps below:
It is highly recommended to adapt a Machine Page (Model Dashboard) centrally via the Machine Page Layout. If you need to configure the Machine Page for the selected machine only, proceed as follows:
-
In the selected Machine Page, select Manage Layout > Add widgets.
-
Select the desired widget. A preview will be shown.
-

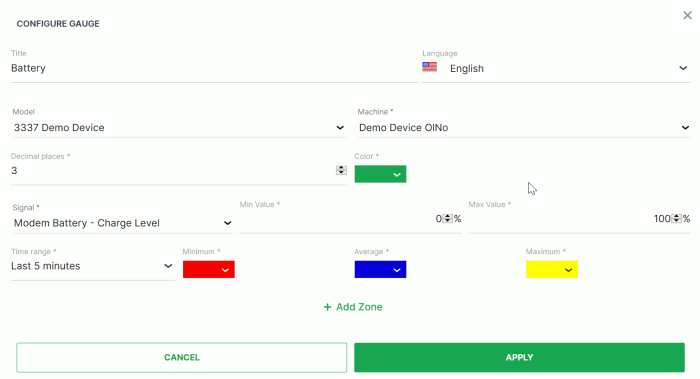

Click Apply. This forwards you to the widget configuration dialog with the options described below.
If you need to adapt the Organization Dashboard, select the desired dashboard configuration and click Edit > Add
to open the widgets catalog, see also Add Widgets to the Organization Dashboard.
| Item | Description |
|---|---|
| Title | The label for the widget (English is the default, additional languages must be configured. See Language below). |
| Language | Select the language for the title of the widget. |
| Model* | The model of the machine you select to display the gauge (see Info). |
| Machine* | The machine that you select to display the gauge (see Info). |
| Decimal Places | Select the number of decimal places for the value. |
| Signal | Select the signal to be displayed. |
| Min Value | Where the counter will start. |
| Max value | Peak value where the limits of signal capacity or usage are reached. |
| Time | Select a predefined, relative time range, e.g. Last 24 hours or select a custom one, e.g. This last 5 Days, see Time selection. |
| Zones | A distinct value range on the gauge and many zones can be added on the gauge |
Note
*These config options can only be selected from the Organization Dashboard.
Sample¶

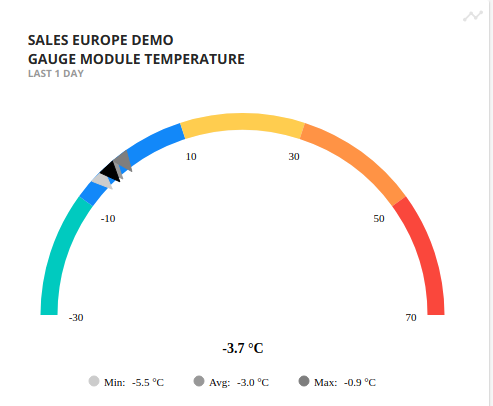

Additional Functionality: As shown in the picture below, clicking on the top-right icon redirects to the Report Chart to display the trends over time for this specific signal.
