Map

Map with pop-up

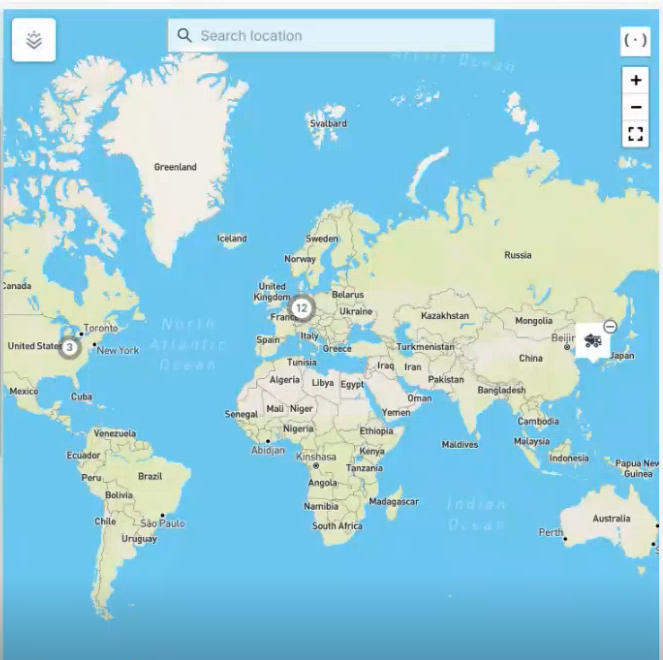

Figure 1: Map with pop-up

The map in the Machines Overview shows the most recent recorded positions of all machines. Machines that are located in close proximity to one another are grouped together and identified by a cluster symbol. Zooming in or selecting the symbol shows each individual machine.

Hovering over a machine on the map displays a pop-up with basic details for online and offline (showing "Last contact") machines:

Hover over machine icon
Figure 2: Hover over machine icon

Hover over machine icon
Figure 3: Hover over machine icon

Selecting the machine icon shows the view with the following details:

Machine pop-up

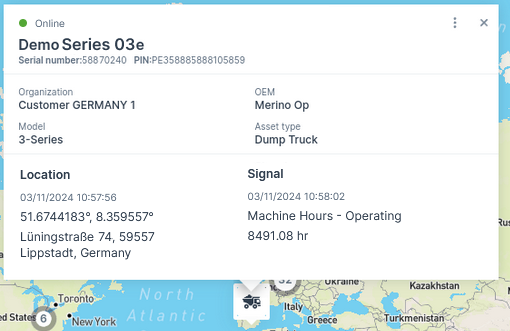

Figure 4: Machine pop-up

Note

You can view the map elements like country-, city names, etc. translated as per the language set in your account preferences.
Supported languages: English (also fallback language), German, French, Italian, Spanish, Korean, Japanese

  • Current connection status (online or Last contact (offline) 1)

  • Machine Name

  • Serial number/PIN

  • Organization

  • OEM name

  • Model

  • Asset type; if there is no asset type assigned to this model, the organization unit name is displayed instead

  • Location together with its last datapoint1

  • Signal (e.g. operating hours)

  • Date and time of the most recent status change

  • Maintenance status (if the maintenance filter is applied)

    • Last contact shows the timestamp of the last time the CU contacted the DataPlatform, i.e. went online.
    • Last datapoint shows the timestamp of the last datapoint, i.e. transmitted files or received machine signals, e.g. engine or location data. Note that certain signals don't update the Last Datapoint, see Proemion Standard Metrics → "Standard System Metrics".

    ↩↩
