Events

The Events widget allows you to view the number of selected events for your organization. For more information about this functionality, see Events.

Configuration

Configure the widget and put it on the Organization Dashboard and/or the Model Dashboard by following the steps below:

It is highly recommended to adapt a Machine Page (Model Dashboard) centrally via the Machine Page Layout. If you need to configure the Machine Page for the selected machine only, proceed as follows:

1. In the selected Machine Page, select Manage Layout > Add widgets.

2. Select the desired widget. A preview will be shown.

3. Click Apply. This forwards you to the widget configuration dialog with the options described below.

If you need to adapt the Organization Dashboard, select the desired dashboard configuration and click Edit > Add to open the widgets catalog, see also Add Widgets to the Organization Dashboard.

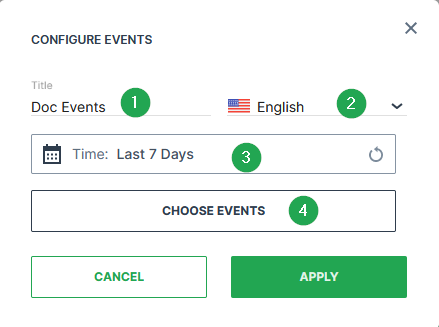

Figure 1: Events Widget Configuration

Events selection:

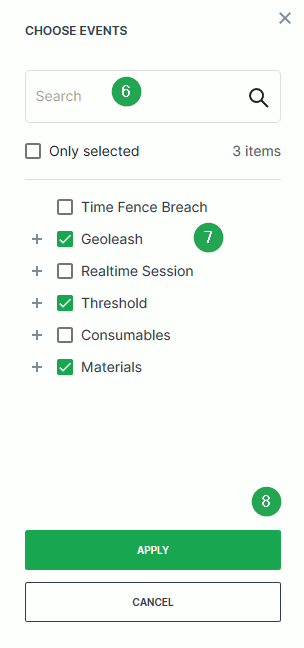

Figure 2: Select the Events to Display

#	Item	Description
1	Title	The label for the widget (English is the default, additional languages must be configured. See Language below).
2	Language	Select the language for the title of the widget.
3	Time range	Select the time period for the display of events up to the previous 2 years.
4	Choose Events	Select the events that should be displayed in the widget.
5	Search Field	Search for internal or custom events implemented and made available to your organization.
6	Only selected (checkbox)	Only display events with a check mark next to it in the list.
7	Apply	Save your changes.

Sample

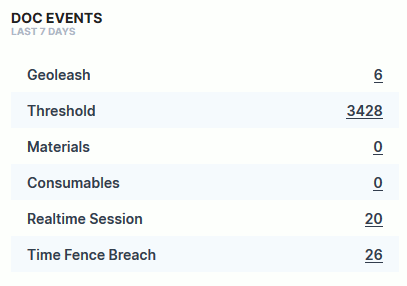

Figure 3: Events Widget Sample
