Diagnostics Cable

The USB cable, USB-A to Micro-USB-B, 1.6m (part number 136000138) is intended for debugging and for diagnosis of the device.

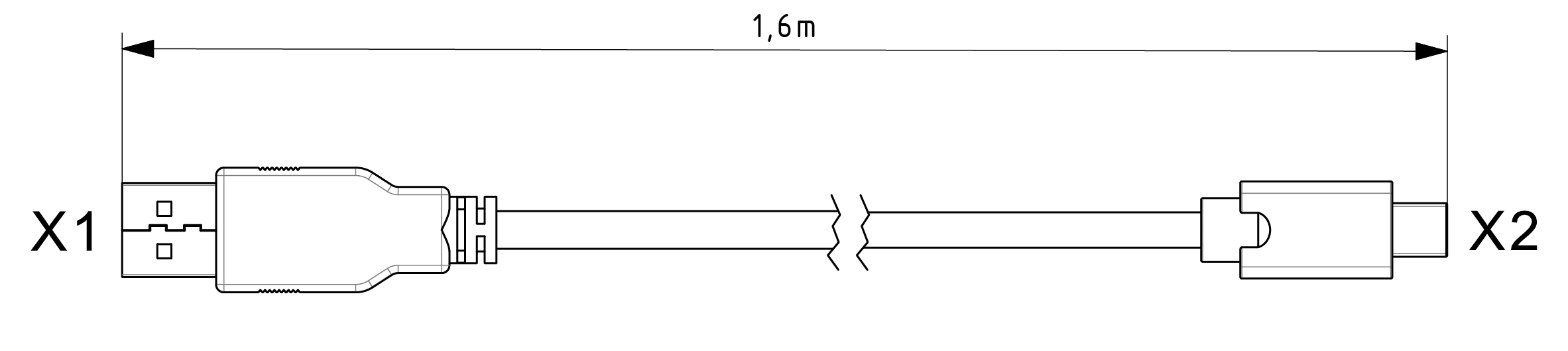

USB cable, USB-A to Micro-USB-B, 1.6m
Figure 1: USB cable, USB-A to Micro-USB-B, 1.6m

It has the following connectors:

  • X1 - USB-A, male
  • X2 - Micro-USB-B, male

X1 - USB-A, male

USB-A connector, male

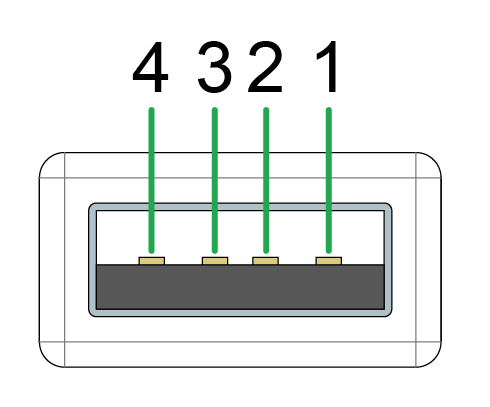

Figure 2: USB-A connector, male


Pin Designation Description
1 VBUS +5V
2 D- Data- (bidirectional)
3 D+ Data+ (bidirectional)
4 GND Ground

X2 - Micro-USB-B, male

Micro-USB-B connector, male

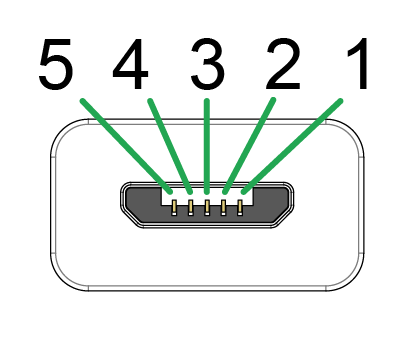

Figure 3: Micro-USB-B connector, male


Pin Designation Description
1 VBUS +5V
2 D- Data- (bidirectional)
3 D+ Data+ (bidirectional)
4 not connected
5 GND Ground
