Annex¶
This chapter contains technical data and certificates.
Technical Drawings¶
Note
You can download the CAD files from our Download Center.

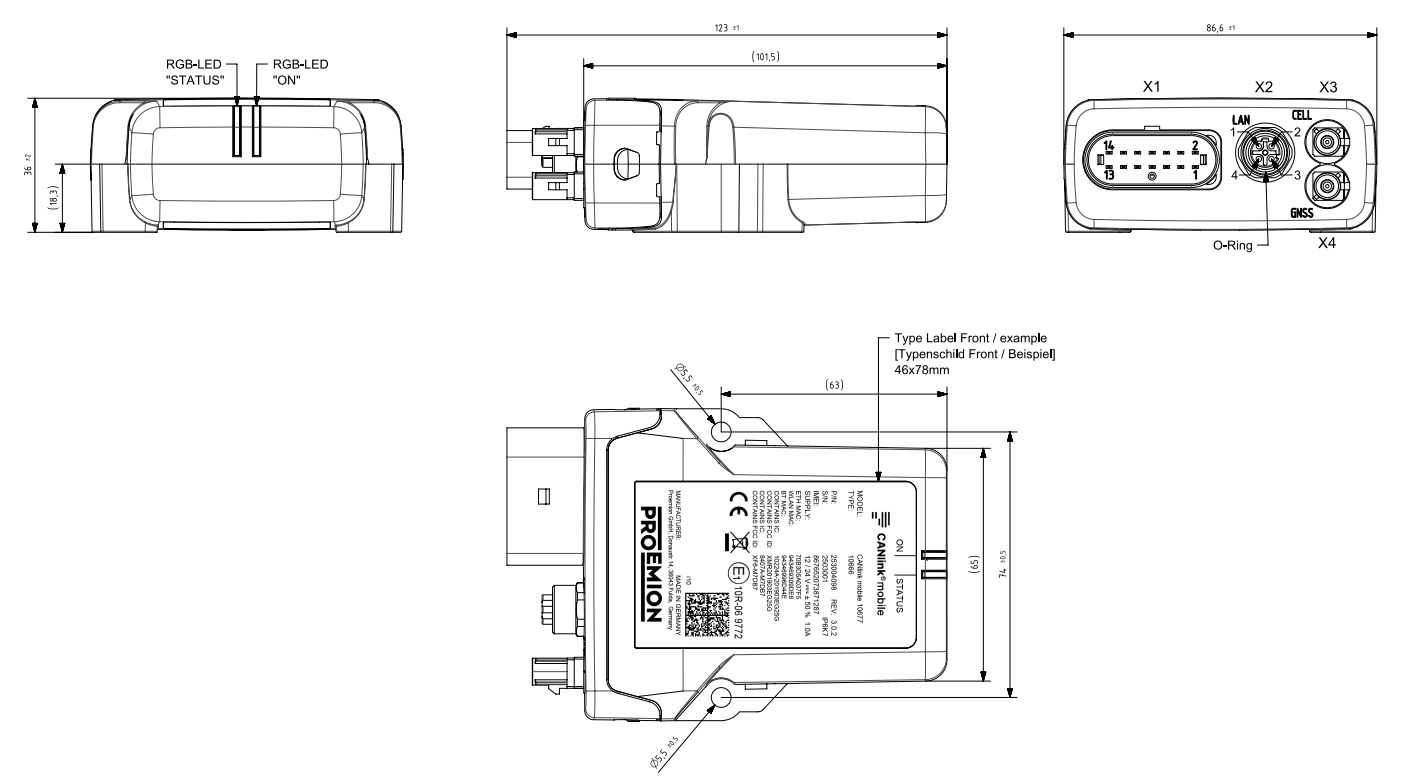

Dimensions of the CANlink® mobile 10000¶
Technical Data¶
This chapter contains information on the technical data of the device.
Mechanical¶
| Parameter | Value |
|---|---|
| Dimensions width/height/depth [mm] | 86,6±1 / 123±1 / 36±2 |
| Color | Black |
| Protection class | IP6K7 The protection class is only ensured if all connectors of the device are plugged in or covered with suitable protection caps. |
| Operating temperature range for devices without battery | -40 °C ... +75 °C / -40 °F ... +167 °F The device or functions of the device like the radio interfaces will do a thermal protection Shutdown at the upper temperature limit, depending on device TYPE and device usage. |
| Operating battery temperature range for devices with battery | Battery discharging: -20°C...+60°C/-4°F...+140°F Battery charging: 0...+45°C / 32°F...+113°F Due to self-heating of the device, the battery temperature is approx. 15°C higher than the ambient temperature, depending on device TYPE and device usage. |
| Storage Temperature range | -40...+75°C / -40°F...+167°F |
| Altitude | The altitude during operation is limited to 2000m for CLM 10xxx devices. This requirement is part of the Electrical Safety Test for IEC 62368-1 |
| Weight | max. 220 g (type 10677) |
| Standard housing material | PA 66/6 - FR |
| Pressure equalizing membrane | Yes |
| Resistance of the housing material to chemicals | The housing material of the device was successfully tested against the following liquids in accordance with the standard EN ISO 175. - Exposure time: 24h - Temperature: 20°C, for Substances No. 5, 6, 7: 80°C - Rel. Humidity < 40% - Operating mode: Off 1. Gasoline 2. Diesel 3. Fast cleaner spray Tetrachlorethen 4. Ethanol 5. Chain adhesive lubricant 6. Hydraulic oil HLVP68 7. Hydraulic oil biologic BP Bio SE 46 8. Coca Cola 9. Cement CEM 1 DIN EN 197-1 „Quickmix" (Bauhaus) 10. Fertilizer NPK,Gardol Grünpflanzendünger 12-4-6 (Bauhaus) 11. Skin care Handsan Cream & Touch (dm) 12. Sunscreen "Sundance Sonnenmilch 20 mittel" (dm) 13. Cooler Antifreeze Type G12 14. Window cleaner concentrate 15. Suds Rivolta BWR 210, 10:1 |
Electrical¶
| Parameter | Value |
|---|---|
| Supply voltage range terminal 30 DC | Rated voltage 12V / 24V, Tolerance +-50%, range 6V to 36V |
| Battery voltage, battery operation | 3.7 V (internal) |
| Current consumption, with terminal 30 supply (24 V) (at 25°C) | < 290 mA (standard mode) < 1 mA (sleep mode) |
| Current consumption, battery operation (3.7 V) (at 25°C) | < 1000 mA (standard mode) < 0.5 mA (sleep mode) |
| Power consumption (at 25°C) | < 7 W |
| Controller | Arm Cortex M4 209 Mhz Arm Cortex A7 650 MHz |
| Memory NAND Flash /EMCC | 4 GB |
| Memory FRAM | 32 KB |
| Memory DDR3L-RAM | 512MB |
| LEDs | 2 LEDs, RGB (red/green/blue) |
| Keys | Push-button in main plug connector |
| Battery | Lithium-polymer, 3.7 V; 1.15 Ah; 4.225 Wh - Charge time: approx. 5 hours - Operating time: - approx. tbd h (standard mode) - approx. tbd days (24-hour cycle) - approx. tbd days (Sleep mode / Standby) |
| RTC with back-up capacitor | Back-up time: 48 h at 25 °C - Accuracy: ±2 s/day at 25 °C, -15 s/day at the lower and +2 s/day at upper temperature limit - Synchronization: GNSS/NTP/DataPlatform - Can be used as source for cyclic wakeup |
Interfaces¶
| Parameter | Value |
|---|---|
| CAN (number, ISO) | CAN1: ISO 11898-2 CAN2: ISO 11898-2 CAN3: ISO 11898-2 |
| Max. CAN baud rate | 1000 kbit/s, 5 Mbit/s with CAN-FD |
| Bluetooth Standard | v5.0 and v2.1+EDR Max. range: tbd |
| Bluetooth frequency range | Bluetooth Classic: 2.402 - 2.480 GHz in 79 channels Bluetooth LE: 2.402 - 2.480 GHz in 40 channels |
| Bluetooth transmission rate | Bluetooth Classic: up to 3 Mbit/s Bluetooth LE 4.0: up to 1 Mbit/s Bluetooth 5.0: up to 2 Mbit/s |
| Wi-Fi® Standard | IEEE 802.11a/g: 54 Mbit/s IEEE 802.11b: 11 Mbit/s IEEE 802.11n (20 MHz channel): MCS 0-7 (SISO): 65 Mbit/s (planned) Dualband 2,4 GHz / 5 GHz |
| Wi-Fi® frequency range | 2.400 - 2.4835 GHz (IEEE 802.11 b/g/n) in 13 channels 5.150 - 5.825 GHz (IEEE 802.11 a/n) in 24 channels |
| Wi-Fi® transmission rate | IEEE 802.11a: to 54 Mbit/s IEEE 802.11b: to 11 Mbit/s IEEE 802.11g: to 54 Mbit/s IEEE 802.11n: to 65 Mbit/s (planned) |
| Wi-Fi® encryption | WPA2 + WPA3 Personal, WPA3 Personal only (SAE) |
| Ethernet | IEEE802.3 100BASE-TX 100 Mbit/s Auto-Crossing, Auto-Polarity, Auto Negotiation M12 socket 4-pin, D-coded |
| Mobile radio | Cellular (EN Countries): GSM: 900 / 1800 UMTS: B1, B8 LTE: B1, B3, B7, B8, B20, B28, B38, B40 Cellular (FCC Countries): GSM: 850 / 1900 UMTS: B2, B4, B5 LTE: B2, B4, B5, B7, B12, B13, B25, B26, B38, B41 Cellular (Asia): LTE: B1, B3, B7, B8, B28, B40 Cellular (Asia/Japan): LTE: B18, B19, B41 Cellular (Asia/China): LTE: B39, B41 |
| GNSS Satellite systems supported | GPS, GLONASS, Galileo, Beidou, QZSS |
| GNSS Singleband | 1559..1606 MHz Sensitivity GPS cold start / Tracking ≤-146dbm / -157dbm Time to First Fix Cold Start ≤35s Hot Start ≤2s Update Rate Positioning Data ≥ 1Hz Horizontal accuracy (GPS, CEP50) ≤4m Supported correction data services: none |
| GNSS Dualband | 1559..1606 MHz, 1197..1249 MHz Sensitivity GPS cold start / Tracking ≤-148dbm / -167dbm Time to First Fix: Cold Start ≤35s, Hot Start ≤2s Update Rate Positioning Data≥ 10Hz Horizontal accuracy (GPS, CEP50) ≤0,5m with RTCM correction data Supported correction data services: RTCM v3.3 |
| External active GNSS antenna | Frequency range 1559..1606 MHz, 1197..1249 MHz Gain LNA 15dB≤Gain≤25dB Supply voltage LNA 2,7V≤Vant≤3,6V Supply current LNA 5mA≤Iant≤25mA Short-circuit Limit <100mA Antenna Detection Limit <3mA |
| Digital OUT | 1 digital output - Terminal 30 switching 6 VDC ... 36 VDC - max. output current: 500 mA - max. switch frequency: 10 Hz - Overvoltage protection up to 36 VDC - Reverse voltage protection up to -36 VDC |
| Analog IN | 3 analog inputs - Measurement range: 0 VDC to 15 VDC - Resolution: 12 bit - Sampling rate: 10 Hz - Overvoltage protection +36VDC - Reverse voltage protection up to -36 VDC - Tolerance: ± 1 % of measurement range end value (at 25 °C) |
| Terminal 15 | 1 digital / analog input - Measurement range: 0 VDC to 50 VDC - Resolution: 12 bit - Sampling rate: 10 Hz - Digital switching threshold: 5.5 VDC (hysteresis 2.3 VDC) - Overvoltage protection +36VDC - Reverse voltage protection up to -36 VDC - Tolerance: ± 1 % of measurement range end value (at 25 °C) |
| Terminal 30 | 1 analog input |
- Measurement range: 0 VDC to 78 VDC - Resolution: 12 bit - Sampling rate: 10 Hz - Overvoltage protection +36VDC - Reverse voltage protection up to -36 VDC - Tolerance: ± 1 % of measurement range end value (at 25 °C) |
|
| Acceleration sensor | Measurement range: ±16 g - Resolution: 16 bit - Sampling rate: <10 Hz - Tolerance: ± 2 % of measurement range end value and offset ±0.15 g (at 25 °C) |
| (Sensor is not calibrated) | |
| Gyro sensor / Rate of rotation sensor | Measurement range: ±250 °/s - Resolution: 16 bit - Sampling rate: <10 Hz - Tolerance: ± 3 % of measurement range end value and offset ±3 °/s (at 25 °C and 1 g) |
| (Sensor is not calibrated) | |
| Temperature sensor | Measurement range: -40 °C ... +85 °C / -40 °F ... +185 °F - Resolution: 0.1 °C - Sampling rate: 10 Hz - Tolerance: ±3 °C / ±5.6 °F |
| (Sensor is not calibrated) |
Protocols¶
| Protocol | Available |
|---|---|
| Layer 2 | ✓ |
| CANopen | ✓ |
| J1939, OBDII | ✓ |
| Customer-specific | On request |
| TCP | Yes |
| SDO client | - |
Status Indicators¶
| Available | Status indicator |
|---|---|
| All types | 2 RGB LEDs (ON / STATUS) |
Certification and Qualification¶
The device has been certified and qualified according to the valid standards and regulations.
For more information on the corresponding approval tests, please contact Support.
Note
We will send you an overview of national approvals on request. Please contact our support. See Chapter Service and Support. Further certificates, such as FCC and Bluetooth SIG certification, are also available at our website Declaration of Conformity.
E1¶
ECE Regulation No. 10 (Revision 6)
Approval number: 10R-06 9772
