Connect the device to a PC

Connect the CANlink® mobile 3600 to your PC as shown in the image below.

For detailed information about the required components, see Starter cable and CANlink® mobile 3600 Launch Kit.

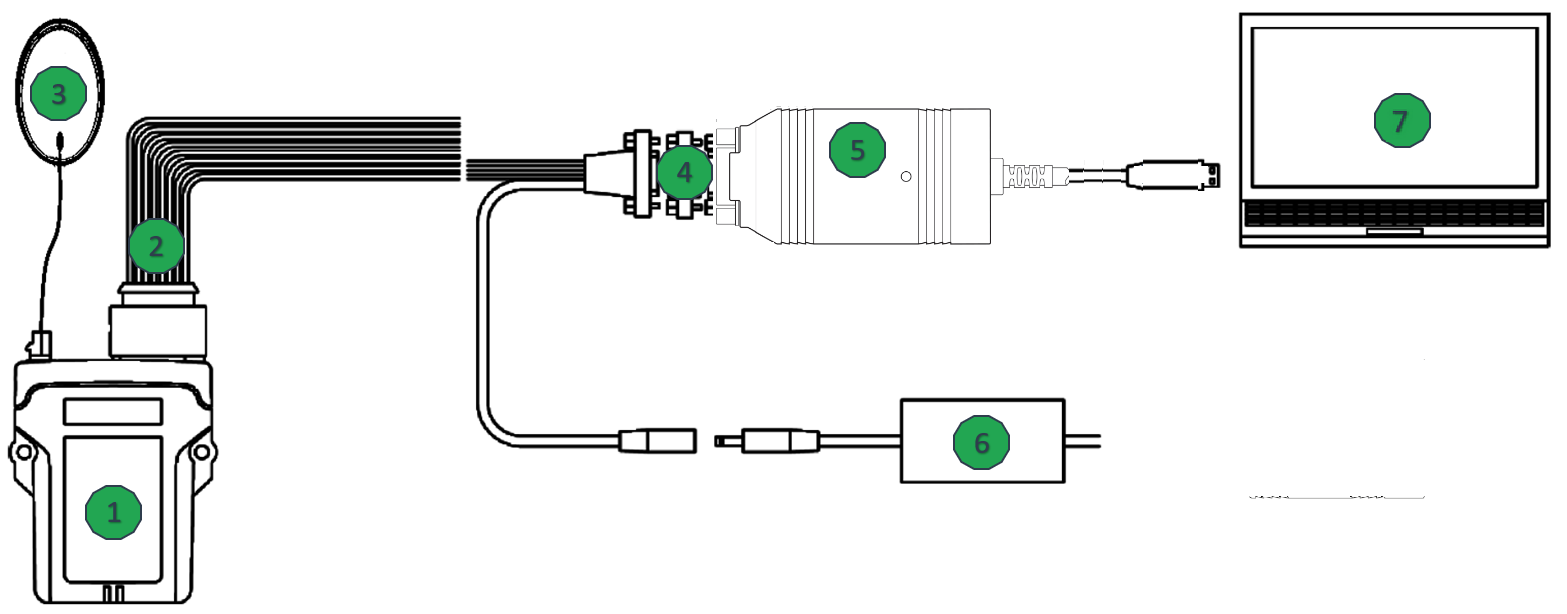

Figure 1: Connect the device to a PC

1. CANlink® mobile 3600

2. Starter cable for CANlink® mobile 3600

3. Antenna

4. CAN bus termination resistor 120Ω

5. PCAN-USB - CAN/USB interface

6. Power supply

7. PC
