ECU FOTA CANopen Specification¶

This document is the technical reference for the CANopen objects used in ECU FOTA. It covers object definitions, addresses, data types, the update state machine, and SDO command examples.

For the integration workflow, what to implement and when, refer to the HMI Approval Interface.

This document is intended for:

CANopen integrators
OEM software developers
PLC developers
HMI developers
embedded integration teams
field application engineers

Warning

As ECU FOTA is currently in BETA phase, CANopen objects, semantics, and workflows may change during the BETA program.

Overview¶

The ECU FOTA workflow is controlled through CANopen objects exposed by the CANlink® mobile 3600 TCU under index 0x5FF3. The objects support update availability signaling, update approval handling, flashing status monitoring, OEM verification handling, diagnostic logging, and timeout handling.

Unless otherwise specified, object values are retained across power cycles and stored in non-volatile memory. Persistence is handled internally by the TCU — the standard CANopen store/restore mechanism is not required. The Persistent column in each object definition indicates whether the value is retained during a power cycle.

A full CANopen stack is not required on the machine side. The ECU FOTA objects can be accessed using individually constructed CAN messages via SDO — the example workflow below uses cansend to demonstrate this directly.

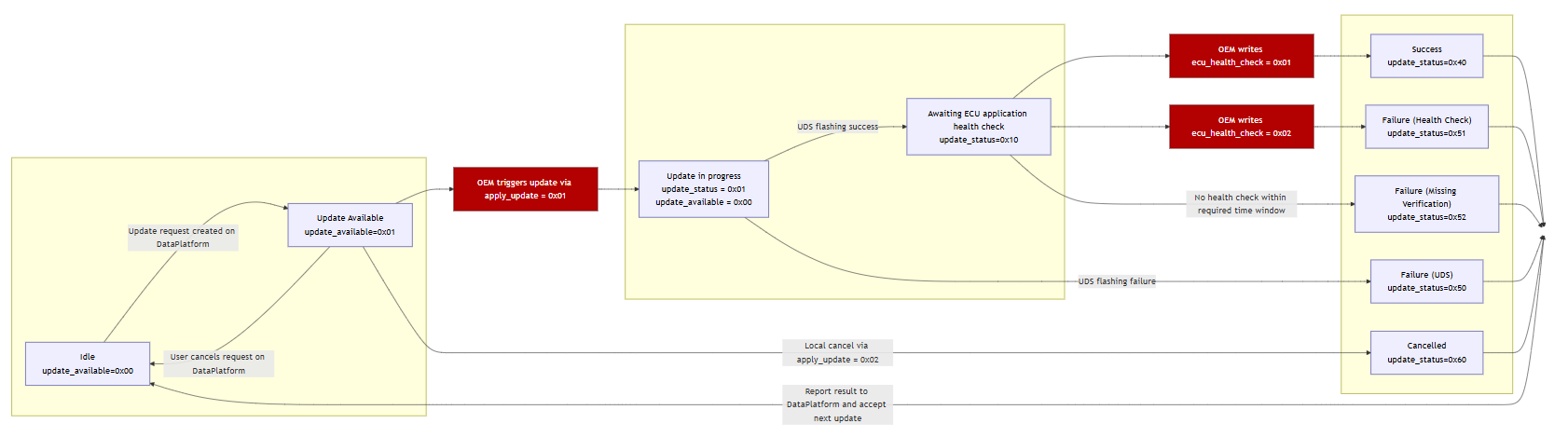

ECU FOTA State Machine¶

The ECU FOTA workflow transitions through the following states during the update lifecycle.

State Overview¶

State	`update_status`	Description
Idle	`0x00`	No ECU update active
Update Available	—	Update available and waiting for operator approval (`update_available = 0x01`, `update_status` remains `0x00`)
Bootloader Transition	`0x01`	TCU sends bootloader CAN frame and waits configured delay — no dedicated status value; reported as Flashing in progress
Flashing	`0x01`	ECU flashing in progress
Waiting for Verification	`0x10`	OEM application verification pending
Successful	`0x40`	Update completed successfully
Flashing Failed	`0x50`	ECU flashing failed (includes bootloader transition failures)
Verification Failed	`0x51`	OEM application verification failed
Verification Timeout	`0x52`	OEM verification timed out
Cancelled	`0x60`	Update rejected or cancelled — only reachable from Update Available state

Values ≥ 0x40 are final states. Once a final state is reached, the update cycle is complete and a new ECU update request is required.

CANopen Address Reference¶

Use the following CAN ID mappings when constructing SDO commands:

Parameter	Example Value
TCU node ID (default, `CAN1`)	`0x27`
TCU SDO request CAN ID	`0x627`
TCU SDO response CAN ID	`0x5A7`
ECU UDS CAN ID (example)	`0x701`

The TCU communicates with the ECU via UDS over CAN. The ECU UDS CAN ID is included here for reference when verifying CAN traffic during integration — it is not used in the SDO commands to the TCU.

Replace <TCU_CAN_ID> with your actual configured value in all cansend commands below.

The examples below use cansend (Linux SocketCAN). The same SDO frames can be sent using any CANopen tool, including PCAN View, Vector CANalyzer, or custom CANopen stacks — the frame content is identical regardless of tool.

Example Workflow¶

The following cansend commands illustrate a complete successful update sequence. For full object definitions and valid values, refer to the object descriptions below.

Read update availability — update_available at 0x5FF3:0x01. Response 0x01 means an update is ready.
```
cansend can1 <TCU_CAN_ID>#40F35F0100000000
```
(Optional) Read update attempts counter — update_attempts_counter at 0x5FF3:0x03. Confirms the update request reached the TCU.
```
cansend can1 <TCU_CAN_ID>#40F35F0300000000
```
Approve the update — apply_update at 0x5FF3:0x40, write 0x01.
```
cansend can1 <TCU_CAN_ID>#2FF35F4001000000
```
Poll update status — update_status at 0x5FF3:0x50. Poll periodically. Proceed when value is 0x10.
```
cansend can1 <TCU_CAN_ID>#40F35F5000000000
```
Report verification result — ecu_health_check at 0x5FF3:0x60, write 0x01. TCU sets update_status to 0x40.
```
cansend can1 <TCU_CAN_ID>#2FF35F6001000000
```
Confirm final status — expected response: 0x40 (success).
```
cansend can1 <TCU_CAN_ID>#40F35F5000000000
```

Status Objects¶

Use these objects to monitor update availability, progress, and execution status.

update_available¶

Property	Value
Object	`0x5FF3:0x01`
Access	read-only
Type	UINT8
Persistent	Yes

Indicates whether an ECU update is available and ready to be applied.

Value	Meaning
`0x00`	No update available
`0x01`	Update available — can be applied via `apply_update`

Reset behavior: the TCU resets this object to 0x00 when the update is triggered or cancelled via apply_update, or when cancelled remotely via DataPortal.

update_status¶

Property	Value
Object	`0x5FF3:0x50`
Access	read-only
Type	UINT8
Persistent	Yes

Reports the current or final status of the ECU update operation. The final status remains stored until the next update is initiated via apply_update.

Value	State	Type
`0x00`	Idle	Transient
`0x01`	Flashing in progress	Transient
`0x10`	Waiting for OEM health verification	Transient
`0x40`	Update successful	Final
`0x50`	Flashing failed	Final
`0x51`	Health verification failed	Final
`0x52`	Verification timeout	Final
`0x60`	Update cancelled	Final

Note

Once update_status reaches a final value (≥ 0x40), identification objects (update_request_id, ecu_can_id) and timestamp objects are overwritten when the next update becomes available. See Update Identification Objects.

Typical successful sequence:

0x00 → 0x01 → 0x10 → 0x40

update_status = 0x60 (cancelled) is only reachable from the "Update Available" state — that is, before apply_update = 0x01 has been written. Once flashing has started, local cancellation via apply_update = 0x02 is rejected with SDO abort 0x08000022.

update_attempts_counter¶

Property	Value
Object	`0x5FF3:0x03`
Access	read-only
Type	UINT32
Persistent	Yes

Counts the number of ECU update requests received by the TCU. Increments each time update_available transitions from 0x00 to 0x01. Use this counter to confirm that an update request reached the TCU and to track the total number of updates over the machine lifetime.

Update Identification Objects¶

These objects identify the current update target and request. They are updated each time a new update becomes available (update_available transitions from 0x00 to 0x01).

Note

Once update_status reaches a final value (≥ 0x40), these objects are overwritten when the next update becomes available. Do not interpret them as information about the update that just completed.

update_request_id¶

Property	Value
Object	`0x5FF3:0x02`
Access	read-only
Type	STRING (36 characters)
Persistent	Yes

Globally unique identifier (UUID v4) for the current update request. Provides traceability between DataPlatform, TCU, HMI, and OEM logging systems.

ecu_can_id¶

Property	Value
Object	`0x5FF3:0x05`
Access	read-only
Type	UINT32
Persistent	Yes

The CAN identifier of the ECU targeted by the current firmware update.

Timestamp Objects¶

The following objects contain UNIX timestamps in seconds (UTC, seconds since 1970-01-01 00:00:00).

update_available_time¶

Property	Value
Object	`0x5FF3:0x04`
Access	read-only
Type	UINT32
Persistent	Yes

Timestamp indicating when the TCU detected and made the update available. This reflects TCU detection time, not the DataPlatform request creation time.

update_start_time¶

Property	Value
Object	`0x5FF3:0x52`
Access	read-only
Type	UINT32
Persistent	Yes

Timestamp indicating when ECU flashing started (when apply_update = 0x01 was accepted).

update_end_time¶

Property	Value
Object	`0x5FF3:0x53`
Access	read-only
Type	UINT32
Persistent	Yes

Timestamp indicating when the ECU update completed, either successfully or with failure. Updated when update_status transitions to a value ≥ 0x40.

Approval and Verification Objects¶

apply_update¶

Property	Value
Object	`0x5FF3:0x40`
Access	write-only
Type	UINT8
Persistent	No

Approves or rejects a pending ECU update.

Value	Meaning
`0x00`	No effect
`0x01`	Approve — trigger UDS ECU firmware update
`0x02`	Reject — cancel and delete the pending update

This object can only be written when update_available = 0x01. Writing a non-zero value while update_available ≠ 0x01 causes the TCU to return SDO abort 0x08000022. Writing 0x00 is always permitted regardless of state and has no effect.

After a non-zero value is accepted:

update_available resets to 0x00
The TCU reports current update status in update_status

After approval (0x01), the TCU sends the configured bootloader switch CAN frame (if defined), waits the configured delay, then initiates the UDS programming session (0x10 0x02 per ISO 14229).

Warning

The bootloader trigger must only be activated at the correct point in the update workflow. See Configure Electronic Architecture for details.

ecu_health_check¶

Property	Value
Object	`0x5FF3:0x60`
Access	write-only
Type	UINT8
Persistent	No

Reports the OEM-side ECU application verification result after flashing.

Value	Meaning
`0x00`	No effect
`0x01`	Verification successful — TCU sets `update_status` to `0x40`
`0x02`	Verification failed — TCU sets `update_status` to `0x51`

This object can only be written when update_status = 0x10. Writing a non-zero value in any other state causes the TCU to return SDO abort 0x08000022.

After a non-zero value is accepted, the TCU reflects the outcome in update_status.

update_progress¶

Property	Value
Object	`0x5FF3:0x51`
Access	read-only
Type	UINT8
Persistent	No

Estimated progress of the current update in percent. Resets to 0 when update_available transitions to 0x01. Starts incrementing after apply_update = 0x01 is accepted.

Timeout Object¶

ecu_health_check_timeout¶

Property	Value
Object	`0x5FF3:0x62`
Access	read/write
Type	UNSIGNED16
Unit	minutes
Persistent	Yes

Defines the maximum time in minutes the TCU waits for the OEM to write a health check result after update_status = 0x10. If no result is written within this period, the TCU sets update_status to 0x52.

Value	Behavior
`0`	Timeout disabled — TCU waits indefinitely
`1`–`65535`	Timeout in minutes (maximum ~45 days)

Default: 10 minutes.

SDO Abort Conditions¶

SDO abort code 0x08000022 indicates that data cannot be transferred or stored to the application because of the present device state.

The TCU returns this abort code if:

apply_update is written when no update is available (update_available ≠ 0x01)
ecu_health_check is written when not in verification state (update_status ≠ 0x10)
apply_update or ecu_health_check is written after flashing has already started or the update is already finalized
apply_update or ecu_health_check is written when any invalid state transition is attempted

Troubleshooting¶

Problem	Possible Cause
`update_available` always `0x00`	No pending ECU update request on DataPortal
`apply_update` rejected (SDO abort)	`update_available` is not `0x01`
Flashing does not start after approval	ECU did not accept UDS session — bootloader transition failed
`update_status` remains `0x10`	OEM verification result not written to `ecu_health_check`
Verification timeout (`0x52`)	`ecu_health_check` not written within the configured timeout window
Update cancelled unexpectedly	Operator rejected via `apply_update = 0x02`, or remote cancellation via DataPortal
