Repair Mode¶
If the DOD download to the Display Unit is interrupted or corrupted, the display unit will power on and reset constantly.
Each display unit comes with a certain key combination, which when pressed will send your display unit into Repair Mode in which the DOD download can be repeated.

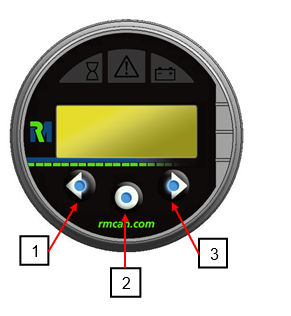

This mode can be activated by pressing keys 1 and 3 simultaneously while making a power reset (by removing and replacing the power source).
The display will be reset to Node ID 1 and baudrate 250kbit.
